Pillow House

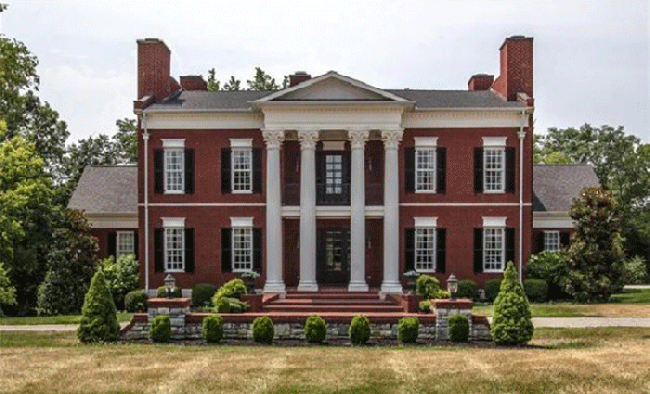

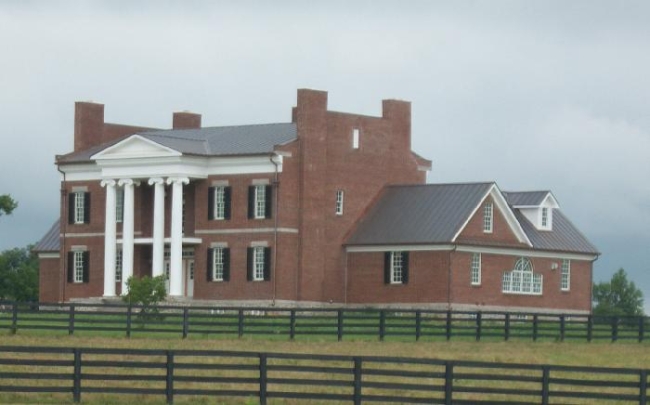

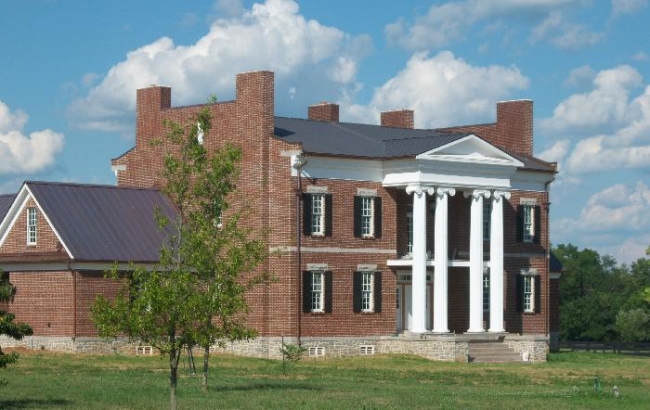

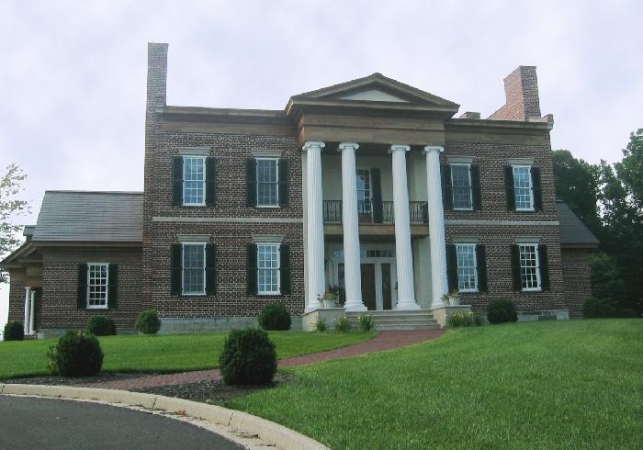

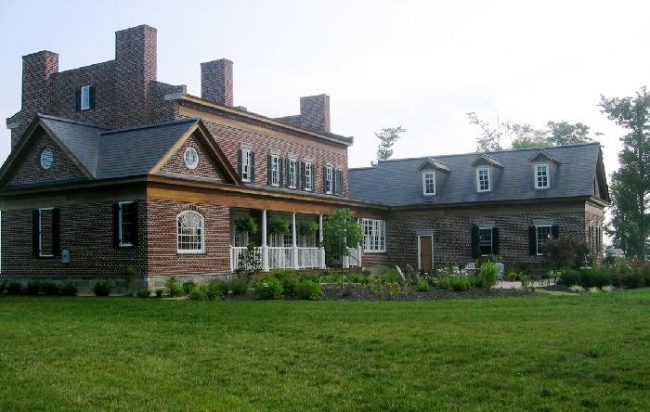

Please note that some photographs have been obtained through client submittals and may not depict the exact rendering or floor plans.

Rendering

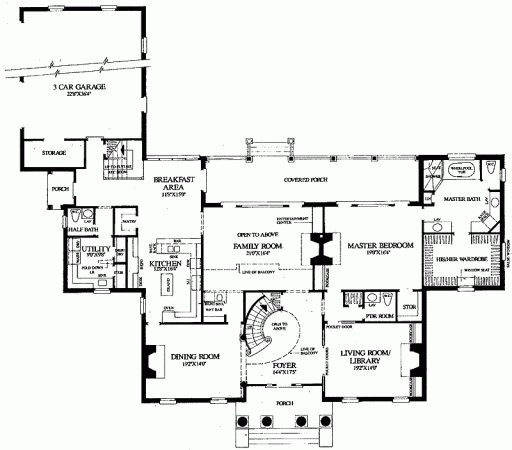

First Floor

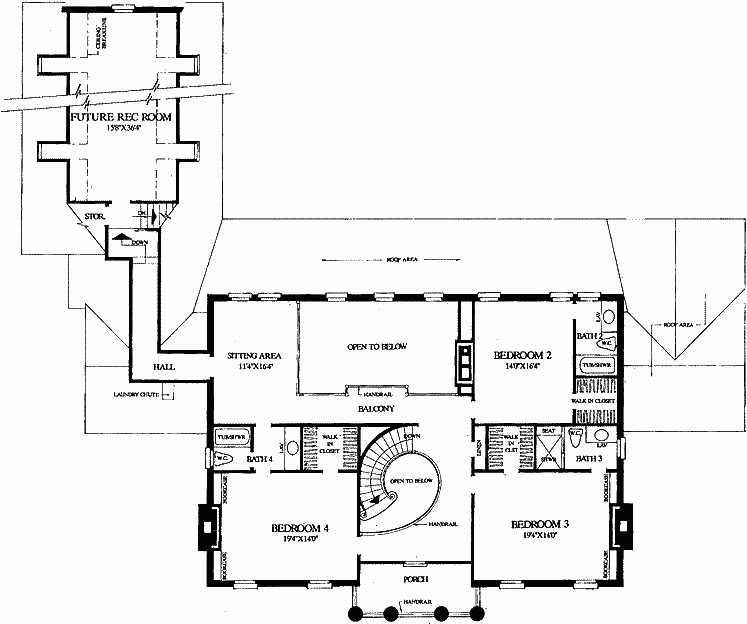

Second Floor

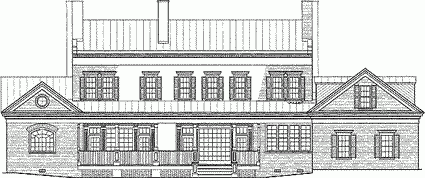

Rear View

Add To Favorites View + Compare Plan Specs Plan Prices

No. of Stories	2
No. of Bedrooms	4
No. of Bathrooms	4
No. of Half Baths	2
Master Bedroom	1st Floor
First Floor	3064 Sq. Ft.
Second Floor	1726 Sq. Ft.
Total Heated Sq. Ft.	4790 Sq. Ft.
Garage Size	3 Car
Foundation	Crawlspace
Width (Ft.-In.)	94' - 2
Depth (Ft.-In.)	92' - 2
First Floor Ceiling	10'
Second Floor Ceiling	10'
Additional Features (if any) Future Rec: 793 sq. ft. This wonderful old estate home has been the cornerstone of social, political and family power for generations. All aspects of these functions were built on a foundation ( like the house) as solid as our constitution and, within these walls, power for good and just causes still resonates. In the small community outside its boundaries, tales are told and retold about the generations who lived, loved and toiled at The Pillow House in the rolling hills of Tennessee.

Category Construction Drawings

Portfolio Historical House Collection

Pillow House Construction Drawings
Construction Drawings Pricing for Pillow House

Regular Plan(s) -
Reproducible Vellum ($1,500.00)
PDF ($1,500.00)
Rendering ($50.00)

Reverse sets and additional sets are also available.

By ordering 1 standard set of plans, they will be stamped "Not For Construction" because, by copyright law, it is illegal to make copies of construction sets. In order to construct the home, you must purchase more than 1 standard set.

PURCHASE POLICY

Because we have no control over the selection of your building professionals, we cannot be responsible for the advice you receive from them or for the methods they use. Please be sure that the plans you order meet your needs prior to purchase in that all sales are final, non-exchangeable, and non-refundable. Additional sets of the same plan may be ordered within a 60-day period at an added cost plus shipping, handling, and tax if applicable (please see price guide). Prices are subject to change without notice. Your business is important to us and we will process your order within 24 working hours.

REVERSE PLANS

To receive plans in reverse, you must request them when placing your order. Since lettering and dimensions appear backward on reverse plans (a mirror image), we suggest you order one reverse for siting and the rest as shown for construction. There is an additional charge of $55 for any amount of reverse (mirror) sets.

CUSTOM DESIGN and MODIFICATIONS

Custom design is our specialty and we will be glad to work with you in creating the home that is exactly what you wish. We will be happy to help our customers modify plans from our portfolios. With the help of our modification design team, you can move windows; enlarge rooms, change elevations, and combine elements from one William Poole plan to another. Ballpark estimates cannot be made prior to the consultation. The consultations may occur in our office in Wilmington, NC or over the telephone.

PLAN ORDERS

All plans and details are drawn at 1/4" scale or larger and include: designer's rendering of front elevation; foundation and dimensioned floor plans; electrical plans; section through house; all exterior elevations; selected interior elevations; door and window sizes; fireplace details; stair details; molding details; cabinet details; roof plan and exterior details. Most plans include alternate basement plans. Floor plans and elevations depicted are subject to minor changes. Floor plan dimensions on layout are approximate. Consult working drawings for actual dimensions and information. All total square footage figures represent heated square floor space only. They do not represent two-story vaulted spaces, garages, unfinished areas or basements.

REPRODUCIBLE VELLUMS

Reproducible Vellums are granted with a non-exclusive license to do the following:

to modify the drawings for use in the construction of a single home;
to make up to (12) copies of the plans for the construction of a single home
to construct one and only one home based on the plans, either in the original form or as modified by you.

Title - You have purchased a license to use the plans. The title to and intellectual property rights in the plans shall remain in William E. Poole Designs, Inc. Use of the plans in a manner inconsistent with this agreement is a violation of U.S. Copyright Laws.

Modifications and warranties - Any modifications made to the vellums by parties other than William E. Poole Designs, Inc., voids any warranties express or implied including the warranties of fitness for a particular purpose and merchantability.

Limitations using the plans - You may NOT do any of the following with the Reproducible Vellum:

use the plans in either original form or as a modified to construct more than one home;
permit others to use or copy the plans;
make more than twelve (12) copies of the plans (if additional plans are needed you must first obtain written consent of William E. Poole Designs, Inc.);
sell, lend or otherwise transfer the plans to another.

Our plans are protected under federal copyright laws. Any reproduction or modification of the plans without the express written consent of William E. Poole Designs, Inc. is prohibited. Your purchase includes a license to use the purchased plans to construct one single-family residence. Reuse of the plans to construct more than one residence is expressly prohibited.

THANK YOU FOR YOUR INTEREST IN OUR DESIGNS AND SERVICES.

To order house plans, magazines or portfolios call our professionals at 910-251-8980.
